Defence

Weapon Mount

Remote weapon mount engineered for fielded platforms.

Stabilised pan/tilt for Tavor and AK-class rifles - IMU hold, laser rangefinder, and a failsafe operator HUD. Fits UAVs, UGVs, boats, and bulletproof vehicles.

Talk to engineering All products
Pan / tilt slew IMU stabilisation Laser rangefinder Failsafe fire control

Overview

The Tavor weapon mount is a full Vishwatronix stack - mechanics, power electronics, motion firmware, and a tactical operator HUD. It supports remote engagement from UAVs and drones, UGVs, boats, and bulletproof vehicles, with defence-in-depth failsafes from the UI through the MCU.

Capabilities

  • Closed-loop pan/tilt slew with joystick speed scaling
  • IMU orientation fusion and optional hold assist
  • Laser rangefinder for ranging and bullet-trajectory calculation
  • Weapon trigger with software and MCU arming gates
  • Tested in burst mode and single shot
  • Fits UAV / drone, UGV, boat, and bulletproof-vehicle programmes
  • Make in India - custom weapon integration available

Specifications

Platform

Weapon class
Tavor-class and AK-class assault rifles (remote mount); custom weapons on request
Host platforms
UAV / drone, UGV, boats, and bulletproof vehicles
Axes
Pan and tilt, closed-loop slew
Stabilisation
IMU fusion with optional hold assist
Ranging
Optional laser rangefinder for detecting range and calculating bullet trajectory
Fire control
Weapon trigger with software + MCU arming gates
Fire modes tested
Burst mode and single shot
Payload capacity
Up to 7 kg weapon + magazine with stability
Mount weight
Less than 6 kg
Origin
Make in India

Power & interfaces

Operating voltage
20 V to 50 V
Power connector
XT90
Control signal
UART (GX12 4-pin connector)
Sights
Day and night vision sights
Sight communication
Ethernet

Operator station

HUD
Vishwatronix Weapon Mount Controller
Input
Joystick pan/tilt, speed lever, hat zoom
Telemetry
Bus V, current, temp, pan/tilt, health bitmask
Safety
Disarm on link loss; safe idle; MCU critical-fault disarm

Mechanics

Structure
Aluminium + stainless steel

Testing & validation

Field footage from UGV and robotic-mule trials - including burst and single-shot fire sequences, accuracy checks, and electronics bring-up.

Mount validation End-to-end validation of the mount on a mobile platform.
Mounted on Mahindra Armado Weapon mount integrated on the Mahindra Armado protected vehicle.
Robotic mule fire trial Live-fire exercise with the mount on a robotic mule.
UGV burst Burst engagement with the mount on a UGV.
Field test Field motion and operator workflow.
Accuracy edit Edited validation pass highlighting aiming and slew.
Electronics bring-up PCB and controller bring-up for the mount electronics.

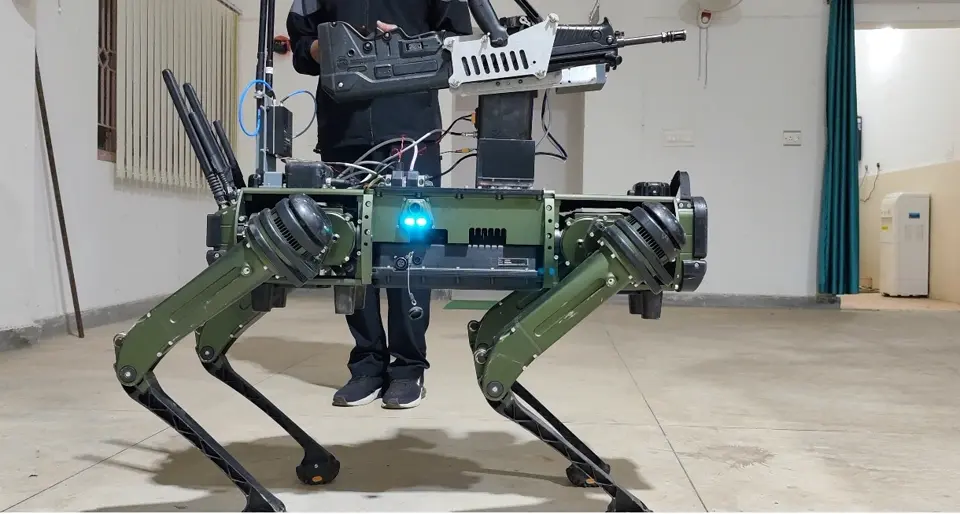

Weapon mount on a robotic mule

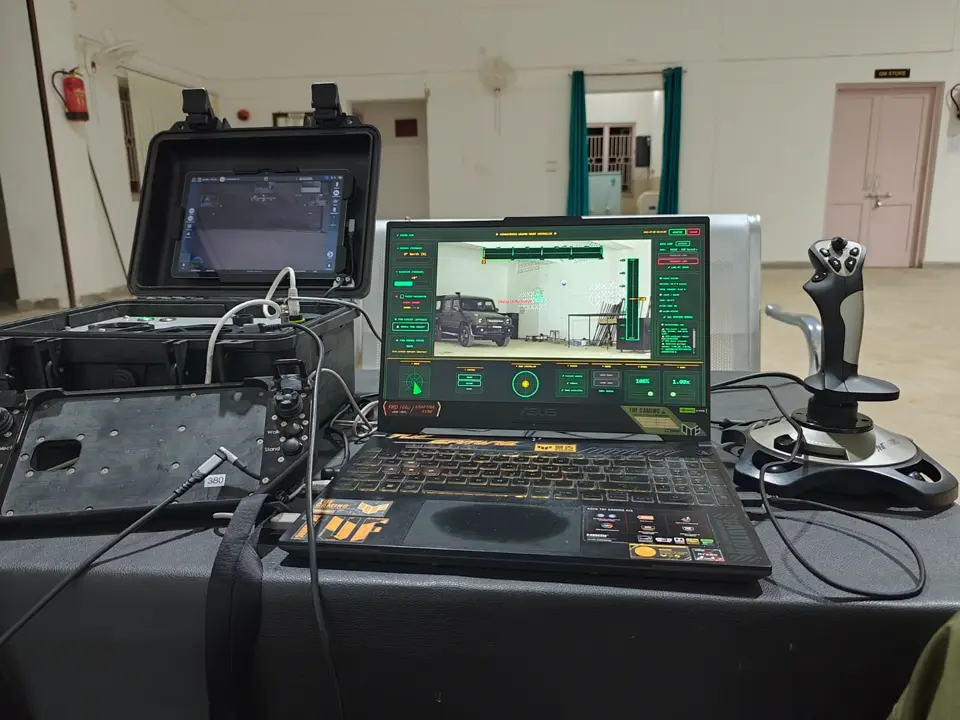

Operator ground station for the weapon mount
Weapon accuracy validation target sheet

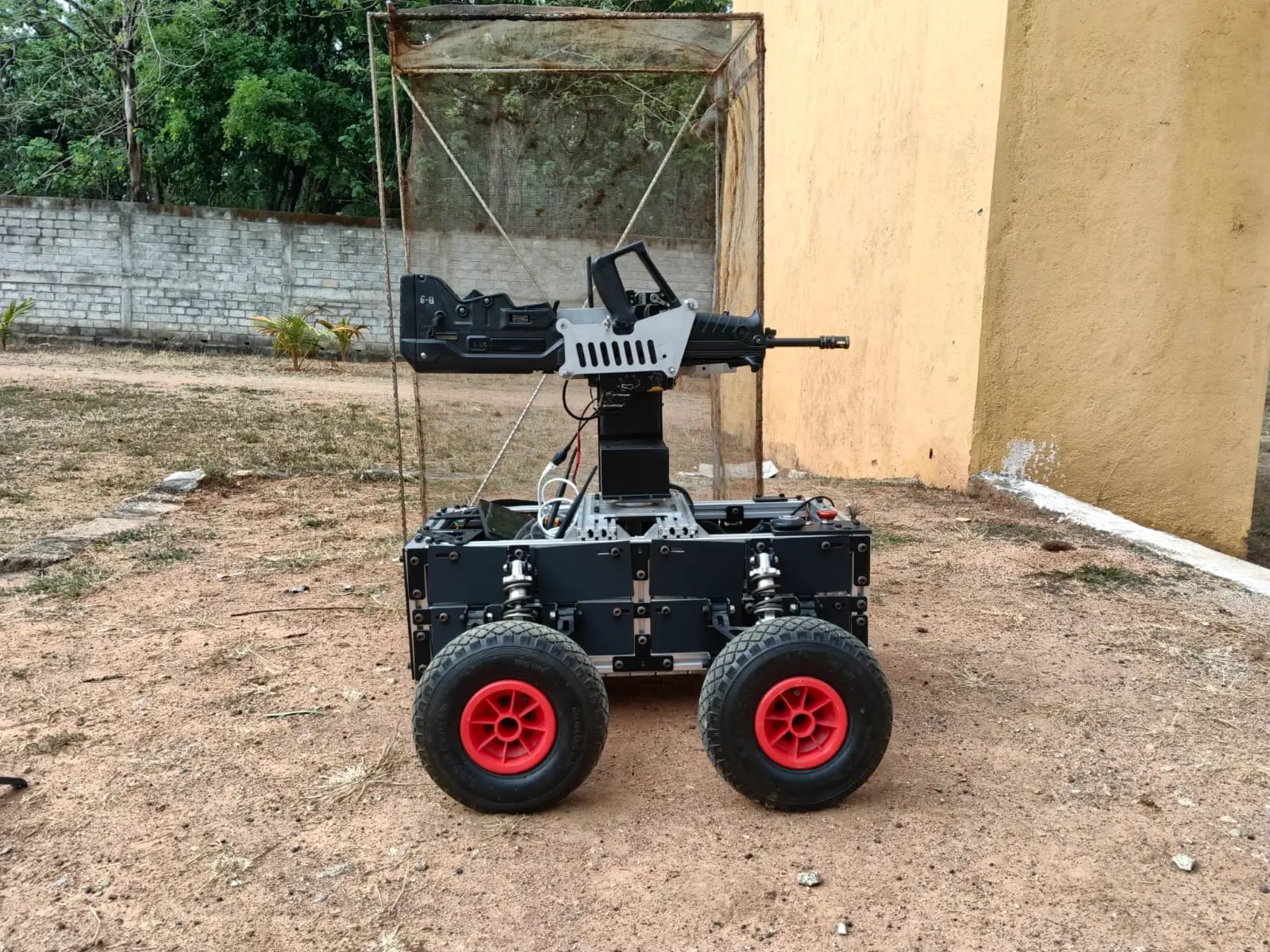

Weapon mount installed on a UGV platform
Accuracy test instrumentation
